Automotive Simulators

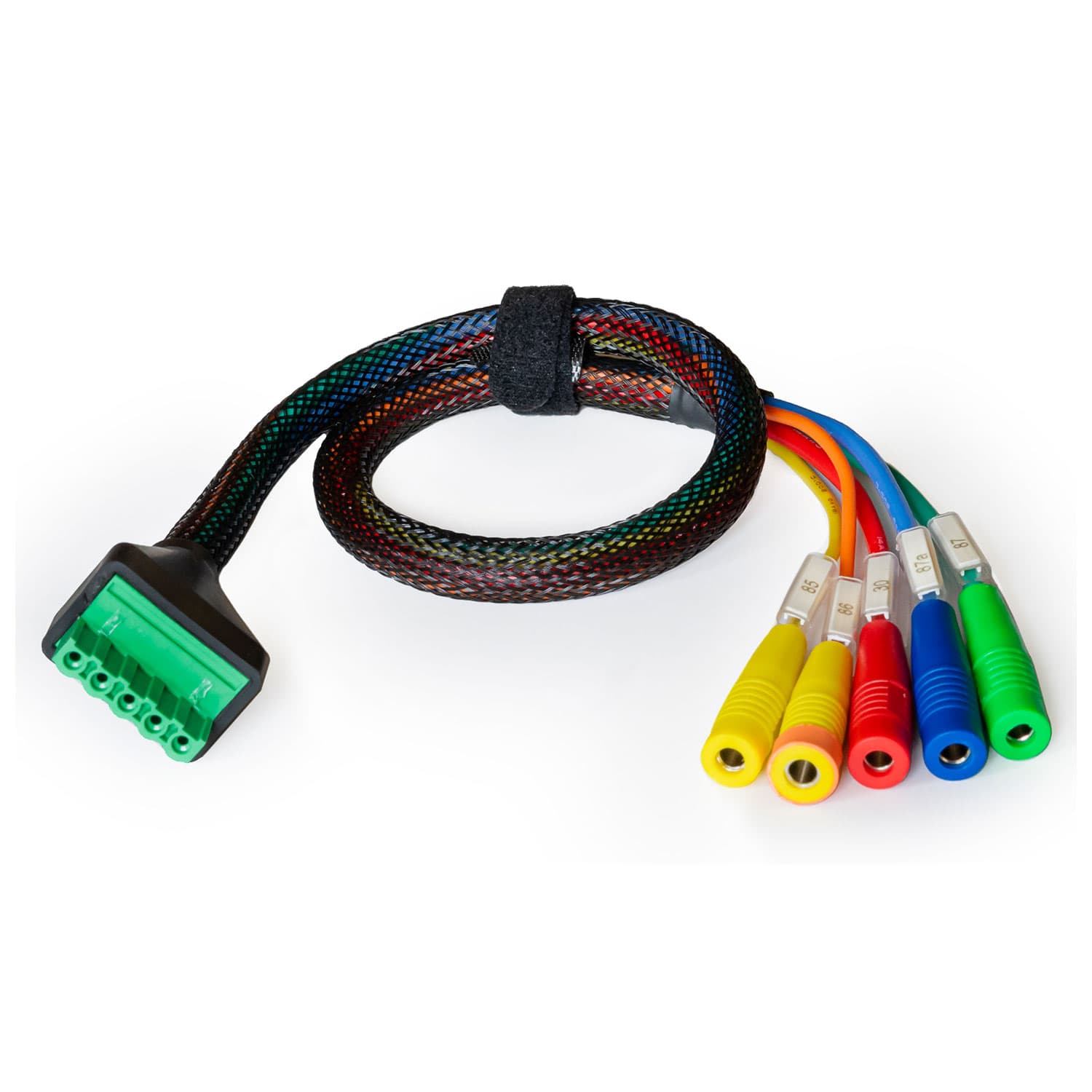

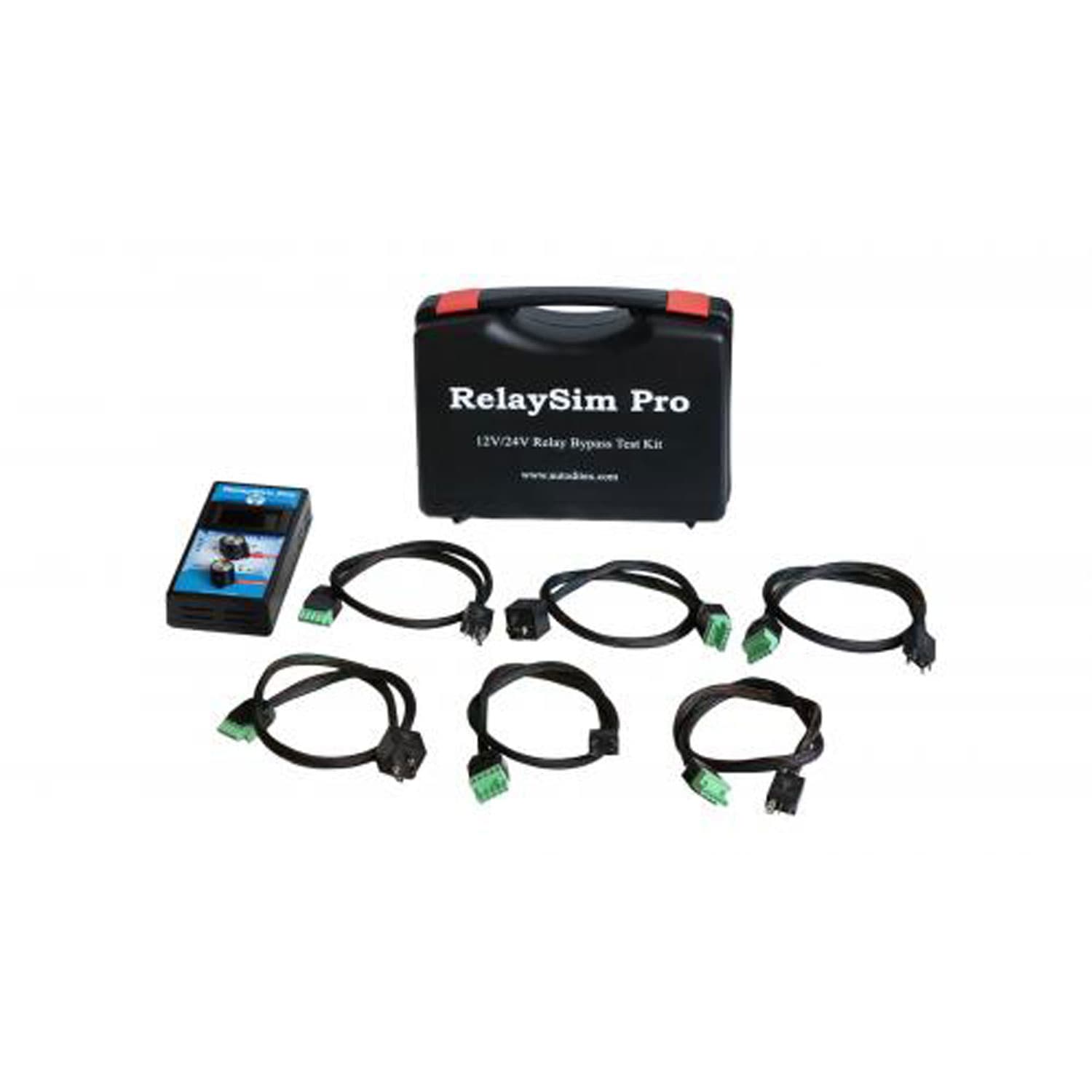

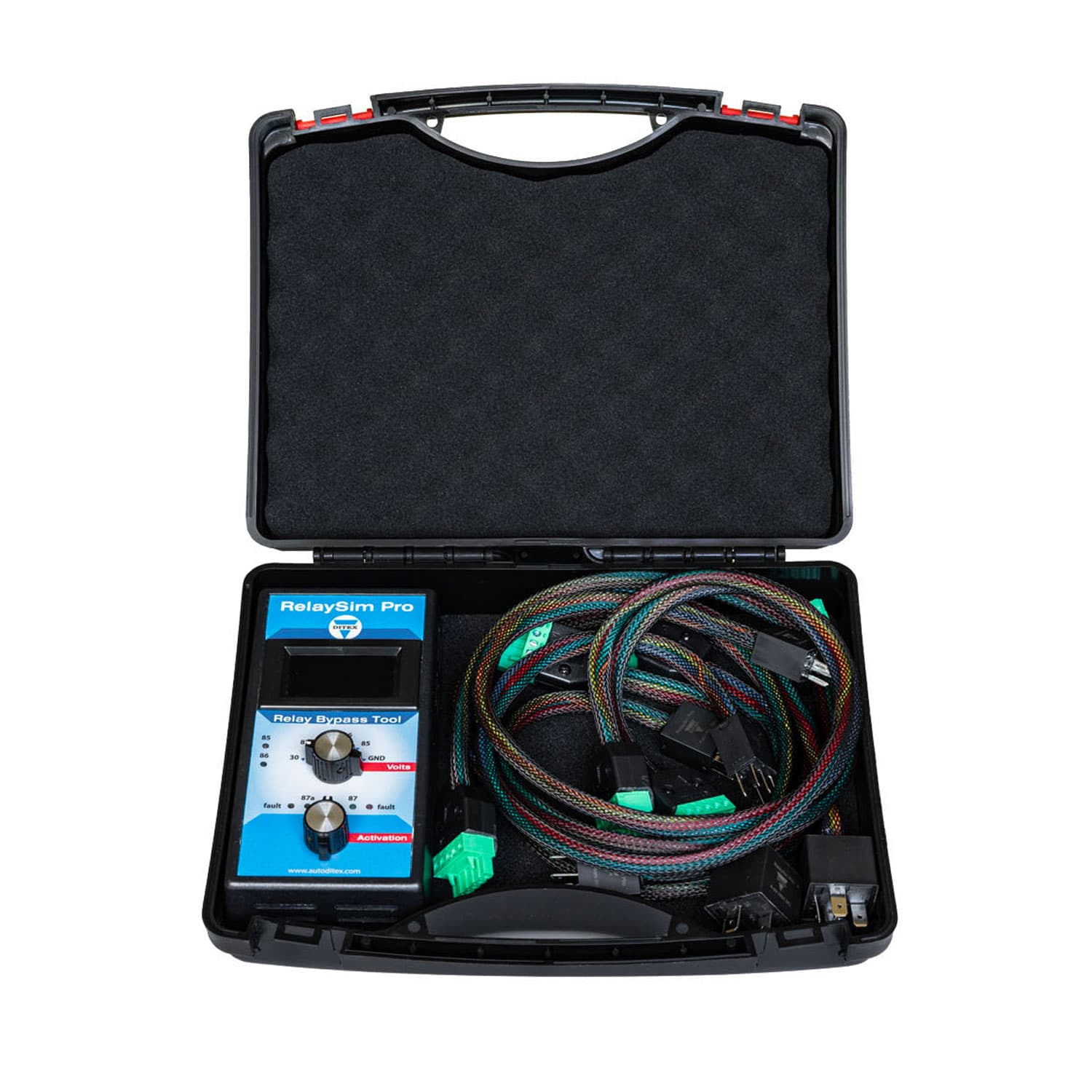

Ditex RelaySim Pro
12V/24V Relay Bypass Test Kit
$898NZD incl. GST
2 (independent)1 (87 or 87a)27A each channel65A each channelGreen and Red LEDs
Free NZ shipping includedOfficial Ditex agentNZ-hours support from the bench
Overview
Key Features:
- Dual high-definition LCD digital display for real-time current and voltage observation.
- Measures current through the 87 or 87a circuit and voltage for circuits 85, 86, 87, 87a, and 30.
- Independent control of the 87 and 87a relay circuits.
- Built-in DC ampere meter (0-50A) and voltage meter (0-199.9V).
- Embedded protective functions: short circuit protection, current limitation, overload protection, thermal shutdown, overvoltage protection, reverse battery protection, loss of GND and positive supply voltage protection, electrostatic discharge protection.
- Open load detection in the OFF-state and fail event indication (Status LED).
Warranty Terms: Information about our warranty is provided here. For further questions, please don’t hesitate to contact us.
