Ditex PDS500X

IN-CYLINDER PRESSURE TESTING FOR FINDING SERIOUS ENGINE MECHANICAL DEFECTS

This Advanced Pressure Diagnostic kit gives you the opportunity to monitor the engine’s dynamic pressure and vacuum and thus access its performance.

It’s designed for all auto repair shops and diagnostic specialists who would like to observe the engine absolute pressure diagram in real-time.

You will be able to find serious mechanical defects in the tested cylinder or in the whole engine, find whether an extra air is entering the cylinder, detect clogging of the exhaust ports, reduced exhaust valve lift, or restricted exhaust.

PDS500G works with all modern automotive and industrial oscilloscopesPressure Diagnostic Sensor

Choose your preferred Transducer above.
The Pressure connection thread type is G 1/4 Female

Dual function cable

Power supply – Two “crocodile” type clips.

Oscilloscope electrical connection – BNC connector

Main compression adapter for PDS500x

Used with the appropriate spark plug adaptor

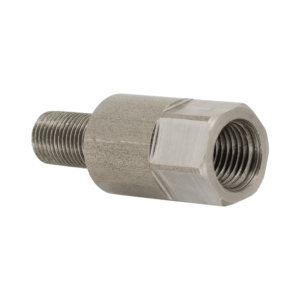

Adaptor M10 x 1.0 short reach

For cars with spark plugs with M10x1 mm short thread

Adaptor M14 x 1.25 short reach

For cars with spark plugs with M14x1.25 mm short thread

Adaptor M14 x 1.25 deep reach

For cars with spark plugs with M14x1.25 mm long thread

WARNING:
Selected adaptor must have the same thread size and to be no longer than the tip of the spark plug you are replacing. While using a shorter adaptor than the spark plug you are replacing may produce results that are slightly low using one that is longer will damage the engine!!!

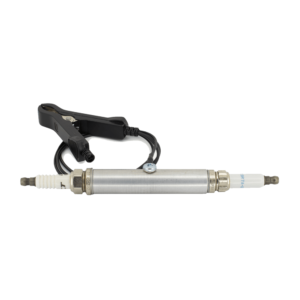

Spark plug grounding clip adaptor

For spark plugs with M14x1.25 mm and M12x1.25 mm threads

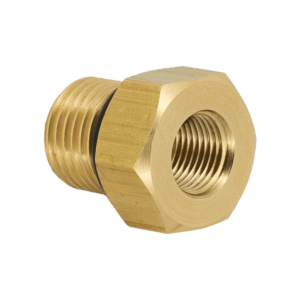

Thread adaptor G 1/4 male to 1/8-27 NPT female

For quick couplers such as Foster 2 series

Thread adaptor G 1/4 male to R 1/8 female

Thread adaptor G 1/4 male to R 1/8 female

Necessary if other quick couplers with 1/8″-28 BSPT conical thread are used

Thread adaptor G 1/4 male to G 1/8 female

Needed when using quick couplers

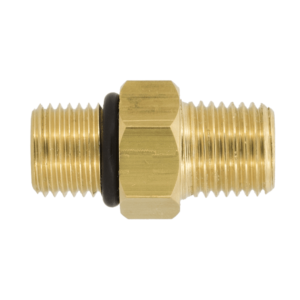

Thread adaptor G 1/4 male to G 1/4 male

Connect the PDS500x sensor’s pressure input to various fuel pressure gauge kits instead of their gauge

Thread adaptor G 1/4 male to 1/4″-1/8 NPT male

Connect the PDS500x sensor’s pressure input to various fuel pressure gauge kits instead of their gauge

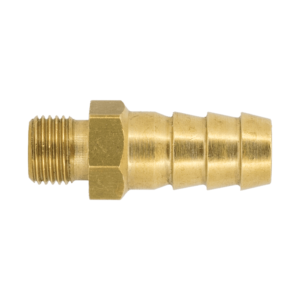

7 mm Hose Barb Adapter for Quick Coupling

G 1/8 Male x 7mm (9/32”) Hosetail Brass Fitting

G 1/8 BSP Female Mini Quick Coupling

Quick Coupling Push-on for pneumatic and fluid handling applications

Mini industrial quick coupling adapter

Male connector model 5150L 1/8 Camozzi

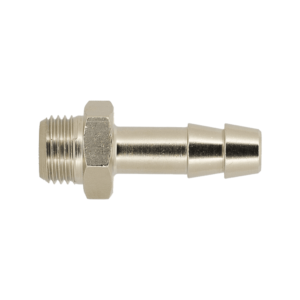

8 mm Hose Barb Adapter for Quick Coupling

G 1/8 Male x 8mm (5/16”) Hosetail Brass Fitting

10 mm Hose Barb Adapter for Quick Coupling

G 1/8 Male x 10mm (3/8”) Hosetail Brass Fitting

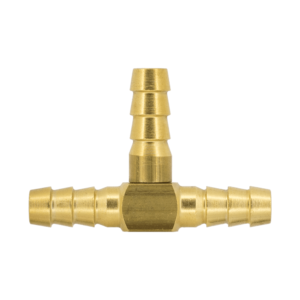

Hose brass barb tee fitting 8mm x 8mm x 8mm

Quickly connect air, water, fuel, and oil lines

Demonstration

Check out the following video for a detailed look at the in-cylinder analysis with  the Ditex PDS500x pressure transducer. This analysis helps to determine the proper synchronization between the crankshaft and the camshafts.

Measurement and comparison of cylinder pressure values ​​at fixed points provides real-time data that can be very helpful in determining engine
health.



Download Technical Information Available Here
